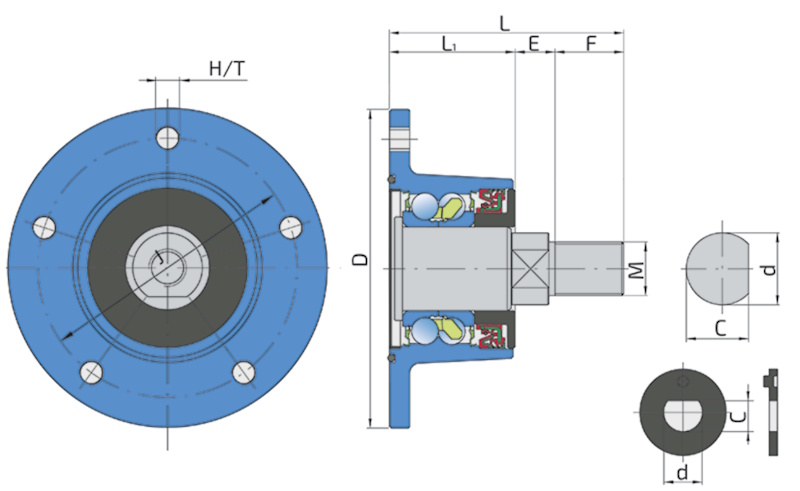

| J | Pitch circle diameter | 140 | mm |
| D | Outside diameter | 160 | mm |
| H/T | Hole/Thread | 5x13 | mm |
| d | Bore diameter | 35 | mm |
| C | D-shape hole cut out dimension | 32.5 | mm |
| M | Outher Thread | M30x1.5 | mm |
| L | Total length | 110.5 | mm |
| L1 | Total flange length | 63 | mm |
| E | Length of D shape | 19.5 | mm |
| F | Length of threaded part | 26 | mm |
| kg | Mass | 4.3 | kg |
| Cdyn | Dynamic load rating | 66.35 | kN |
| Co | Static load rating | 56.5 | kN |
| Pu | Fatigue load limit | 2.37 | kN |
